Unilin RafterLoc PIR Rafter Insulation for Pitched Roofs

Rafter Insulation - Unilin Rafterloc Roof Insulation

Key features:

  • Pitched roof insulation for use between rafters
  • Variable width design for a tight fit between rafters
  • Available in multiple thicknesses (100mm, 125mm, 150mm)
  • High performance PIR insulation (λ = 0.023 W/mK)

Minimum Order Quantity: 4 packs

Enter Eircode at checkout for delivery pricing.

From €107.61 €87.49 Regular Price €107.61 €87.49
Bulky Product
Delivery in
2-3 Days
SKU
RAFLOC125-x
Brand
Unilin
Minimum Order Quantity: 4 packs

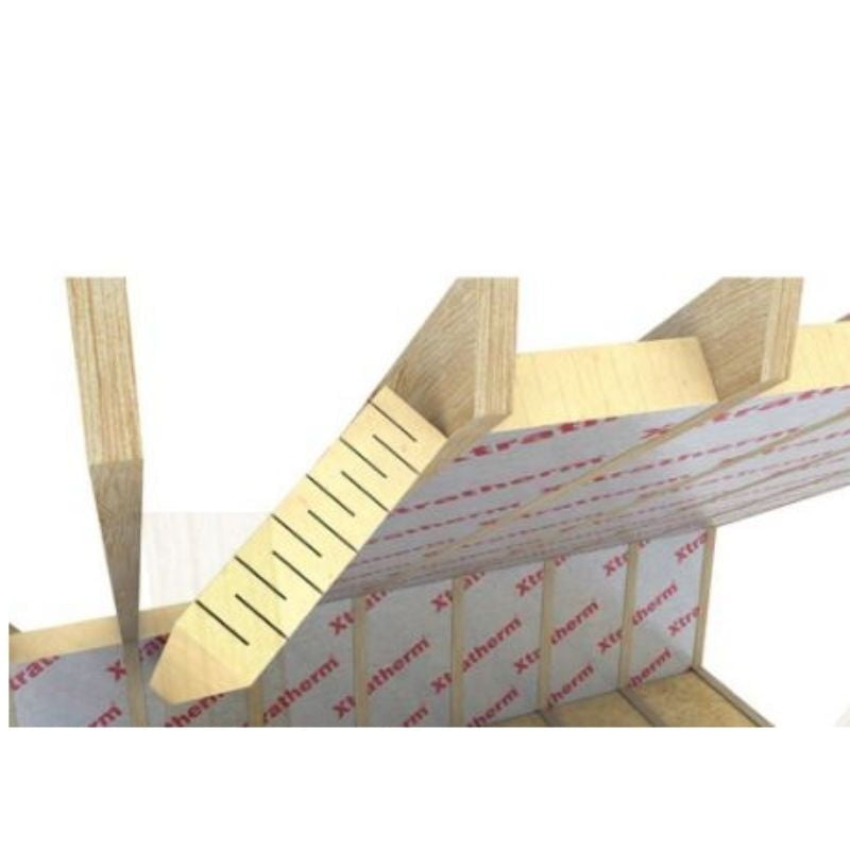

Unilin Insulation’s Rafterloc Pitched Roof insulation is a high-performance PIR board designed for use between rafters in pitched roof constructions.

Variable width feature provides flexibility between rafter spacings, helping achieve a tight, secure fit between rafters.

This helps reduce gaps, cutting, and installation waste caused by uneven timber spacings, while improving overall installation efficiency.

When used in conjunction with a layer of Unilin XT/TL or XT/PR_UF below the rafter, the system delivers a robust and cost-effective solution for achieving excellent thermal performance and supports improved U-values in line with current building practice.

The design helps reduce thermal bridging through timber rafters and supports improved U-values with minimal intrusion into living space.

Features:
  • Variable width pitched roof insulation board
  • High performance PIR insulation for pitched roof applications
  • Designed for installation between rafters
  • Compatible with Unilin XT/TL or XT/PR_UF below rafter systems
  • Reduces thermal bridging through timber rafters
  • Composite foil facings for improved thermal performance
  • Minimal intrusion into internal living space
  • Reduced fitting time and installation waste
  • Rigid PIR insulation board

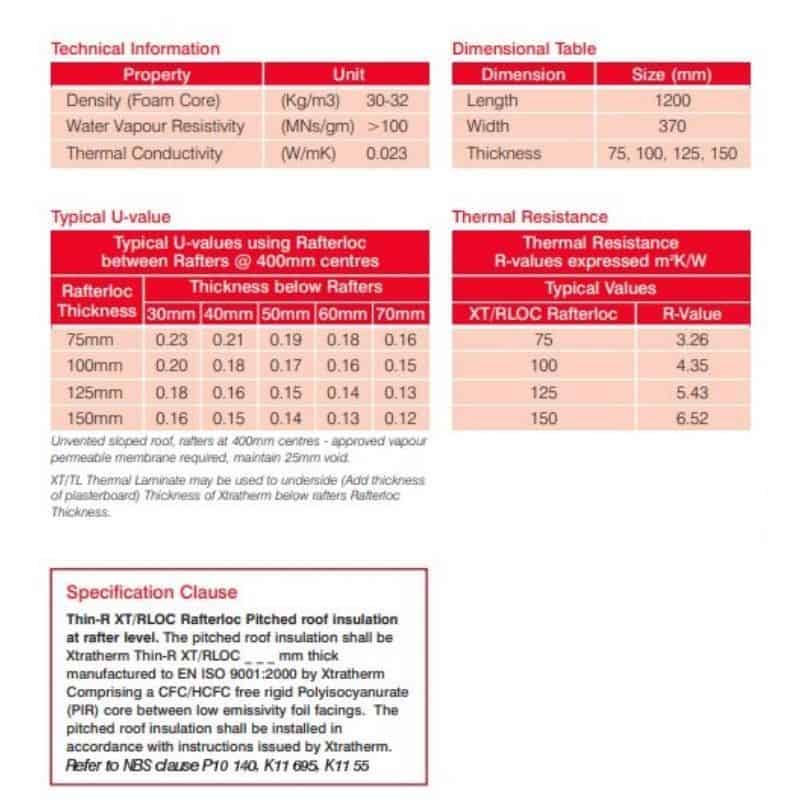

Product Information:
  • Range: Thin-R
  • Material: PIR Roof Insulation
  • Thermal Conductivity: 0.023 W/mK
  • Fire Classification: Euroclass F
  • Available Thicknesses: 100mm, 125mm, 150mm
  • Minimum Order Quantity: 4 packs
Why use Rafterloc?

Rafterloc is designed to improve the efficiency and accuracy of pitched roof insulation installation.

The variable width feature ensures a tight fit between rafters, even where timber spacings are inconsistent, helping to eliminate gaps and reduce heat loss.

This results in improved thermal performance, reduced installation time, and less material waste.

When combined with additional Unilin insulation layers, it provides a high-performance solution for achieving targeted U-values in both new build and retrofit projects.

Typical applications:
  • Pitched roof insulation between rafters
  • New build roof insulation systems
  • Energy upgrade and retrofit roof projects
  • Systems requiring improved U-value performance
Dimensions

150mm Board

  • Height: 1200mm
  • Width: 370mm
  • Depth: 150mm
  • Coverage: 2.66 m² per bale

125mm Board

  • Height: 1200mm
  • Width: 370mm
  • Depth: 125mm
  • Coverage: 3.55 m² per bale

100mm Board

  • Height: 1200mm
  • Width: 370mm
  • Depth: 100mm
  • Coverage: 4.44 m² per bale
Delivery Information

Delivery is available nationwide and is subject to a bulky goods delivery charge.

Delivery costs are calculated at checkout based on your Eircode.

For large volume orders, improved delivery rates may be available by calling 0818 888 000.
